Google Workspace SSO with ZITADEL

This guide shows how to enable login with ZITADEL on Google Workspace.

You can configure two types of SAML SSO on Google Workspace:

• SSO profile for your organization
• Third-party SSO SAML profile

Both profiles need to be configured differently. Please make sure to configure your application for the correct type. Please refer to Google Help to Set up SSO for your organization in case you need additional information on the Workspace setup.

Prerequisites:

• You need to have a domain registered with your Google Workspace account to configure SSO profiles
• Make sure that you verify the same domain also in your ZITADEL organization and set it as primary domain
• A user in Google Workspace (eg, road.runner@acme.com)
• A user in ZITADEL with the same username (eg, road.runner@acme.com); make sure you verify the domain to set the username. This is different than the user's email address

SSO profile for your organization

Configure SSO profile on Google Workspace

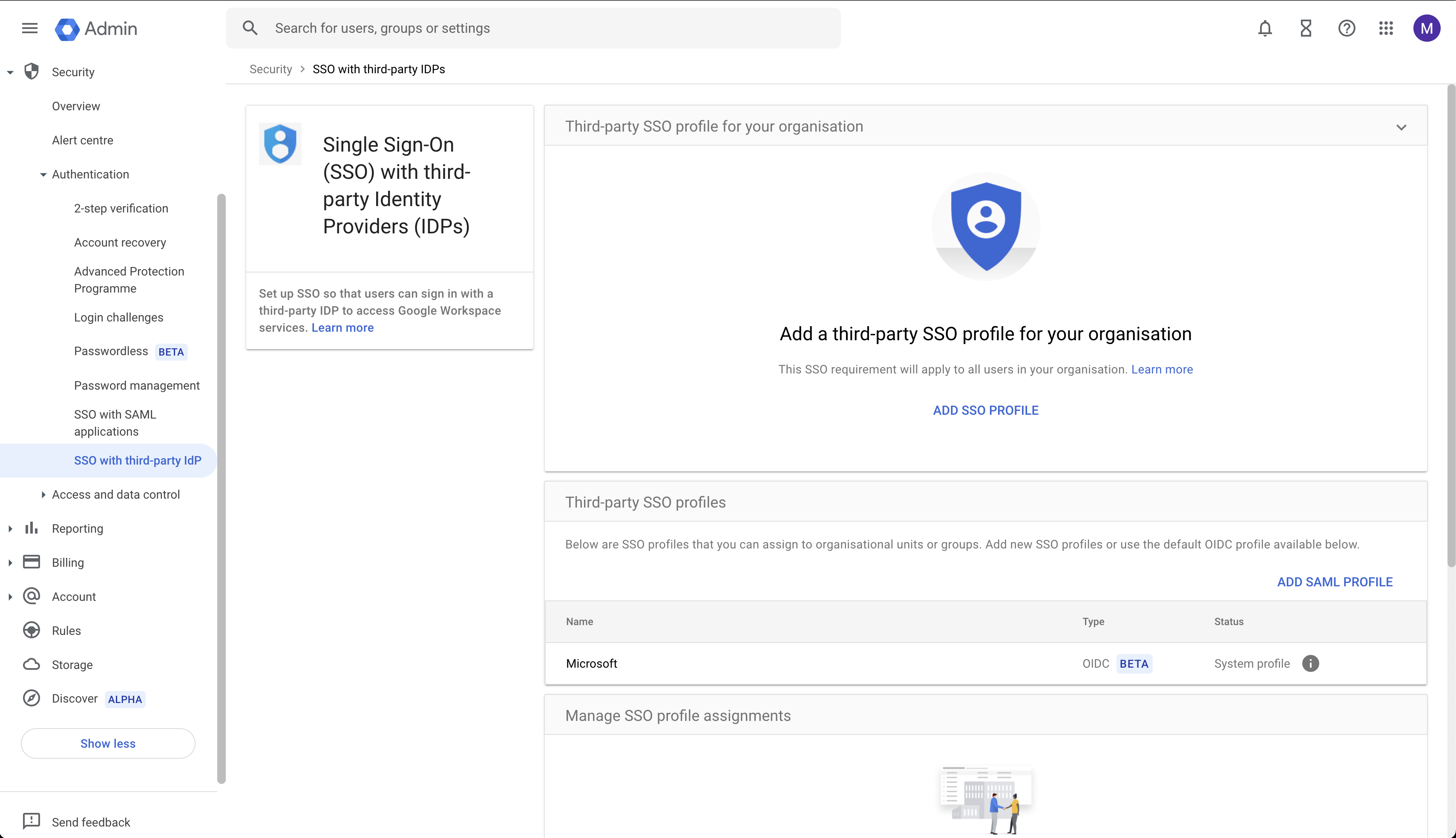

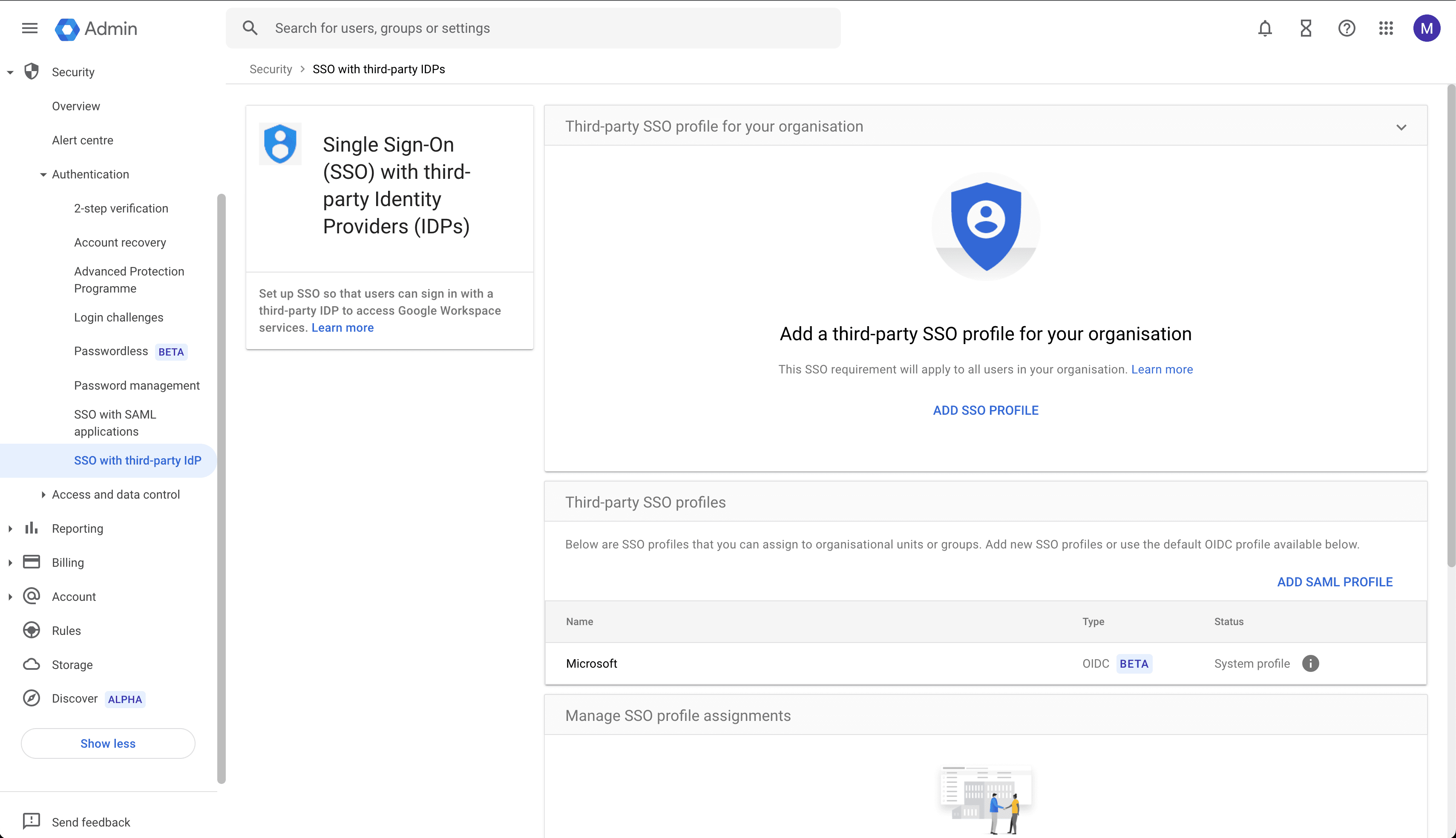

Open the Google settings for SSO with third-party IdP and click on ADD SSO PROFILE.

Download the public certificate from your ZITADEL instance by requesting ${CUSTOM_DOMAIN}/saml/v2/certificate

 wget ${CUSTOM_DOMAIN}/saml/v2/certificate -O idp.crt

Always replace ${CUSTOM_DOMAIN} with your Custom Domain.

Use the following configuration

Create a SAML application in ZITADEL

Create a new .xml file with the following minimal SAML metadata contents:

<?xml version="1.0"?>
<md:EntityDescriptor xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata" entityID="${ENTITYID}">
    <md:SPSSODescriptor protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol urn:oasis:names:tc:SAML:1.1:protocol">
        <md:AssertionConsumerService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="${ACSURL}" index="0"/>
    </md:SPSSODescriptor>
</md:EntityDescriptor>

Set or replace the variables with the values from the next screen as follows:

• ${ENTITYID}: google.com/a/<your_domain>
• ${ACSURL}: https://www.google.com/a/<your_domain>/acs

<your_domain> is the domain you have verified in Google Workspace.

In your existing project:

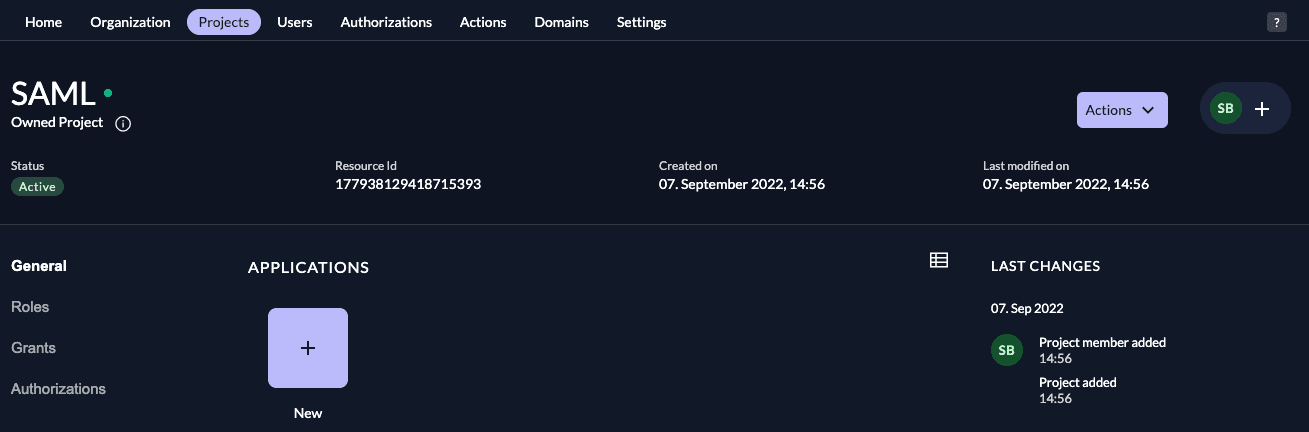

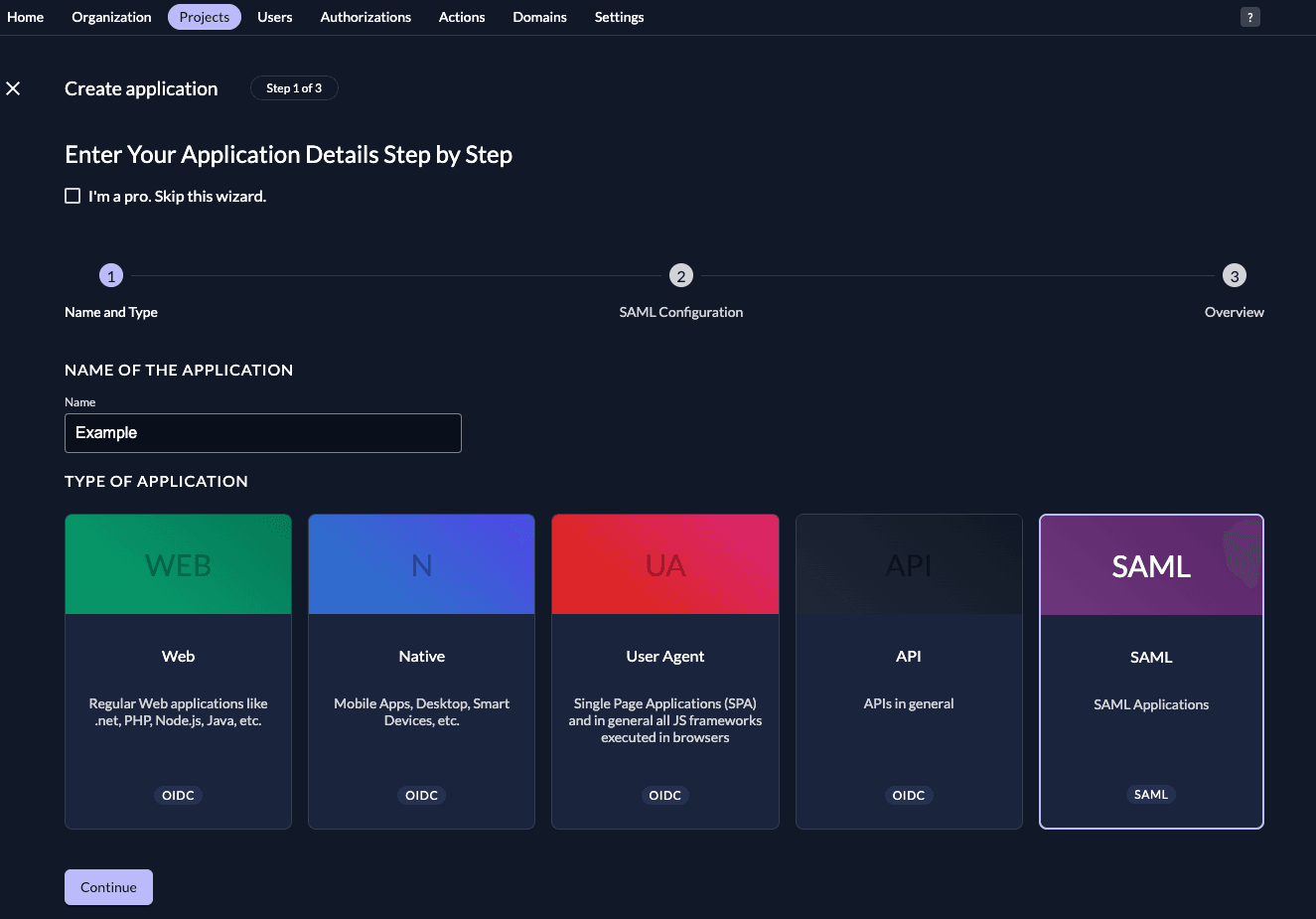

Press the "+"-button to add an application

Fill in a name for the application and chose the SAML type, then click "Continue".

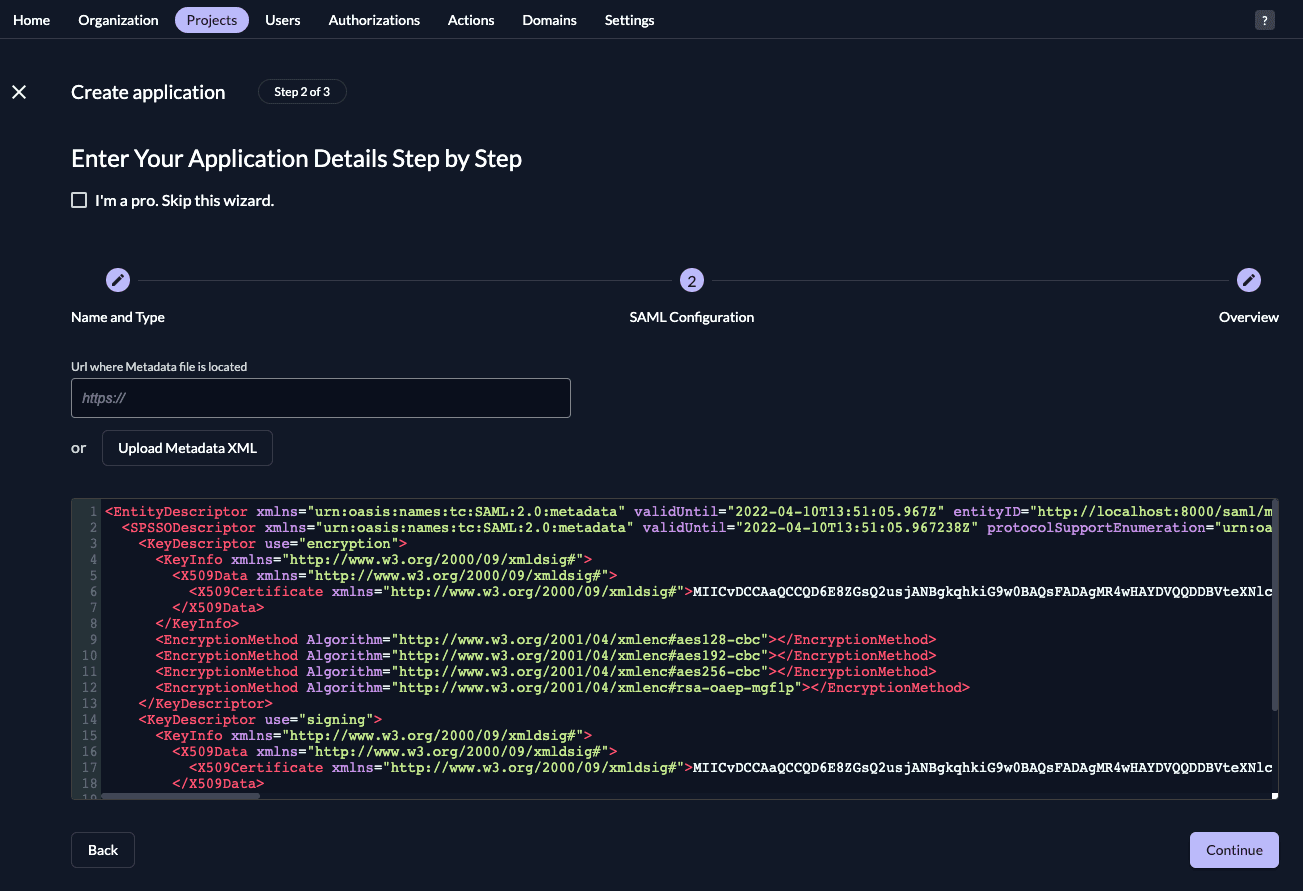

Either fill in the URL where ZITADEL can read the metadata from, or upload the metadata XML directly, then click "Continue".

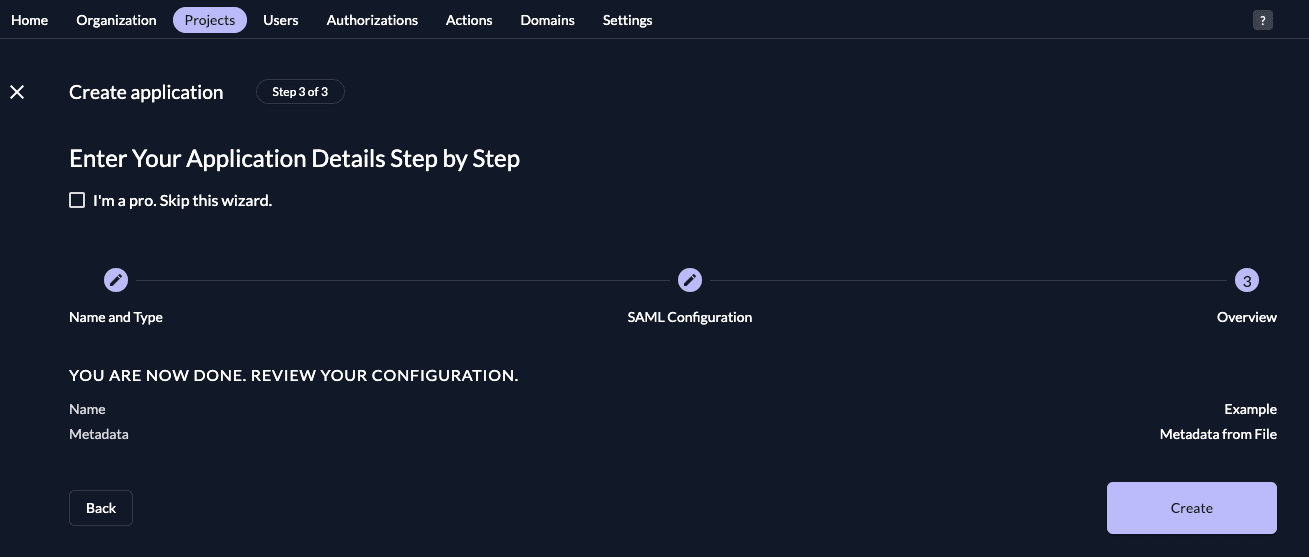

Check your application, if everything is correct, press "Create".

Activate the SSO profile for your organization

Make sure to enable the SSO profile for your organization.

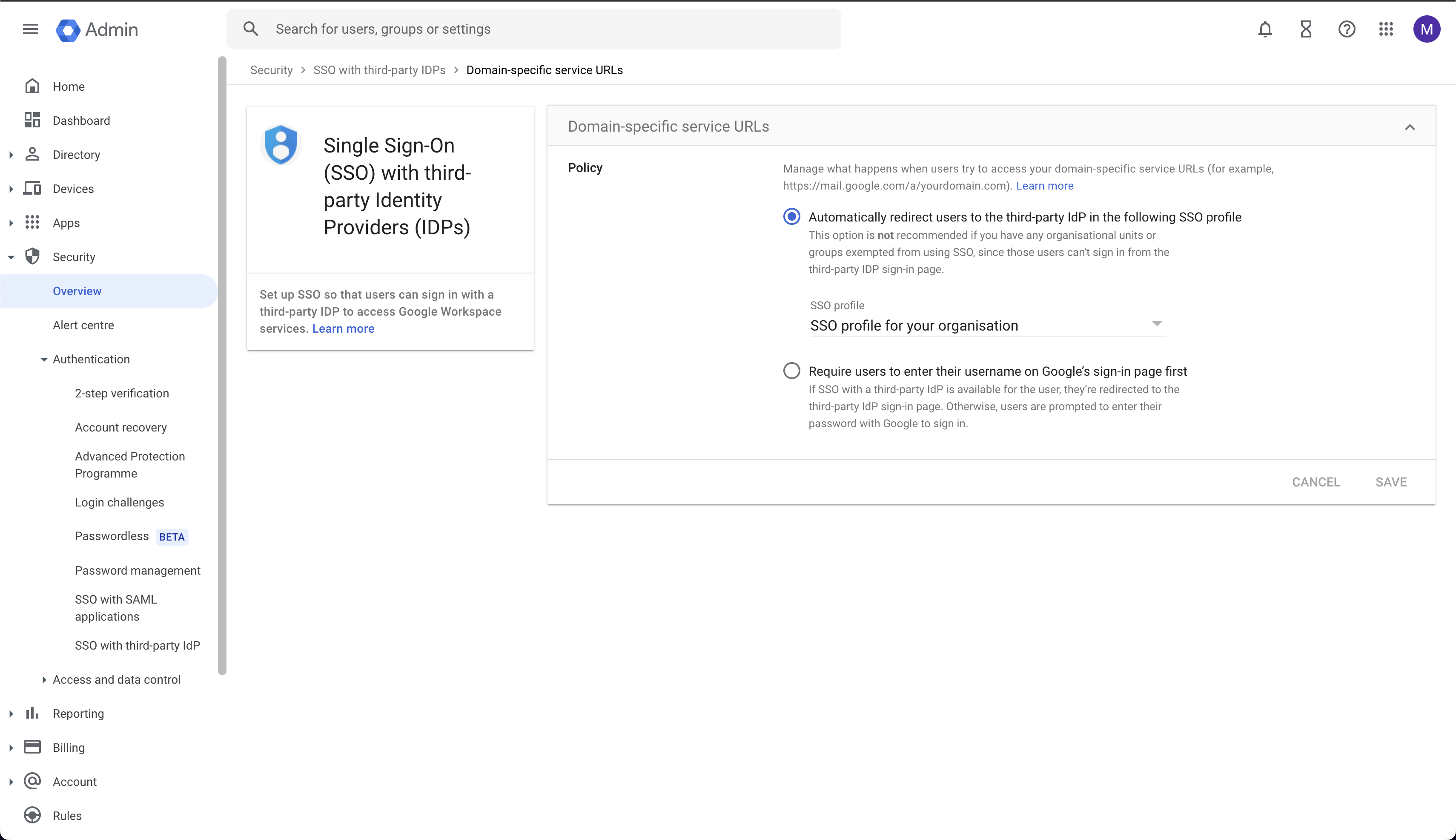

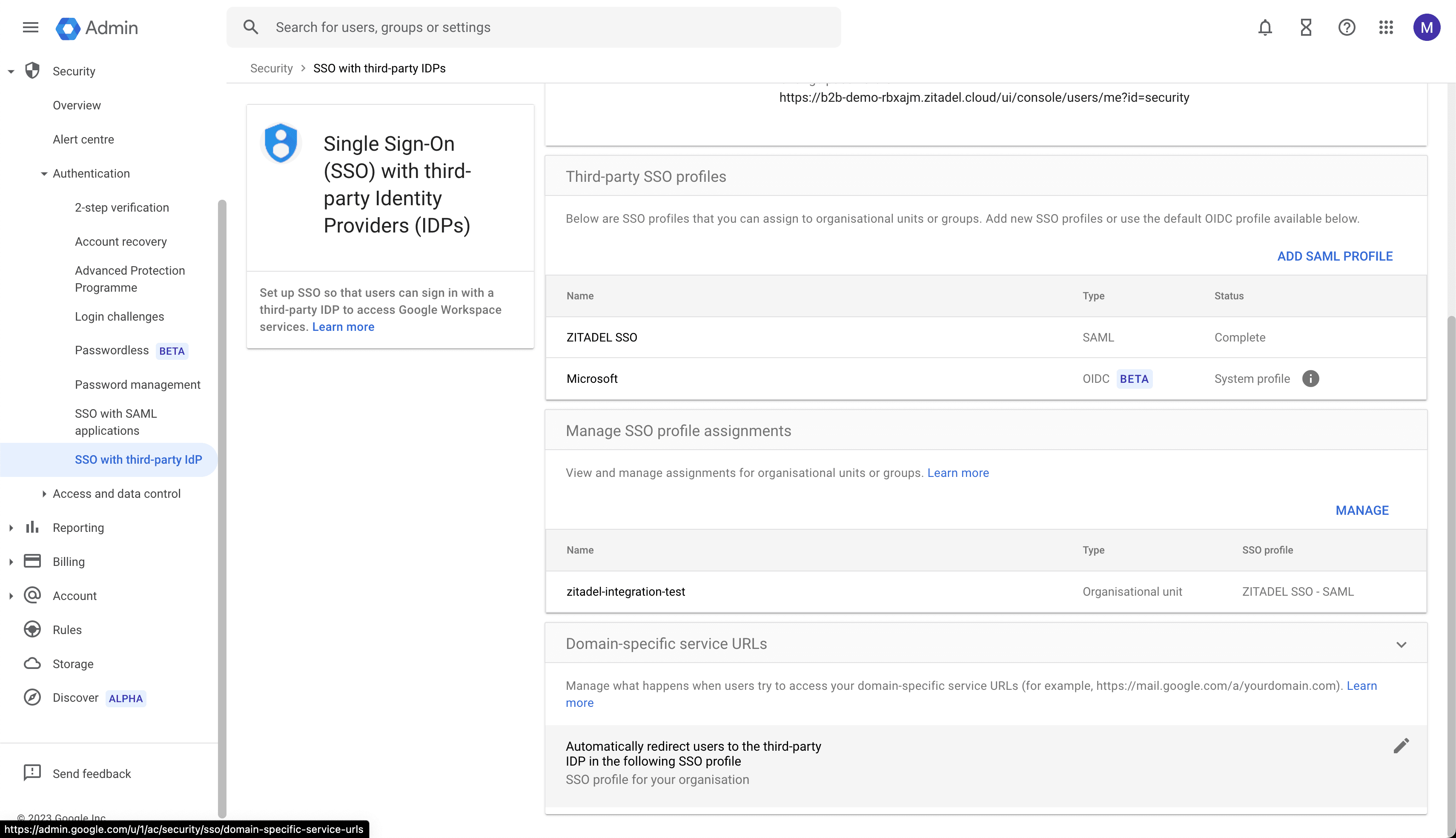

In the domain-specific service URLs settings select "Automatically redirect users to the third-party IdP in the following SSO profile" and select as SSO profile "SSO profile for your organization".

Save the settings.

Verify the SSO profile for your organization

Now you should be all set to verify your setup:

• Open Gmail in an incognito session with the following link: https://mail.google.com/a/<your_domain>
• Enter your username and credentials
• You should be redirected to Gmail and logged in

<your_domain> is the domain you have verified in Google Workspace.

Third-party SSO SAML profile

Configure a third party SSO SAML profile and login users with ZITADEL to Google Workspace.

Add SAML profile on Google Workspace

Open the Google settings for SSO with third-party IdP and click on ADD SAML PROFILE.

Download the public certificate from your ZITADEL instance by requesting ${CUSTOM_DOMAIN}/saml/v2/certificate

 wget ${CUSTOM_DOMAIN}/saml/v2/certificate -O idp.crt

Always replace ${CUSTOM_DOMAIN} with your Custom Domain.

Use the following configuration

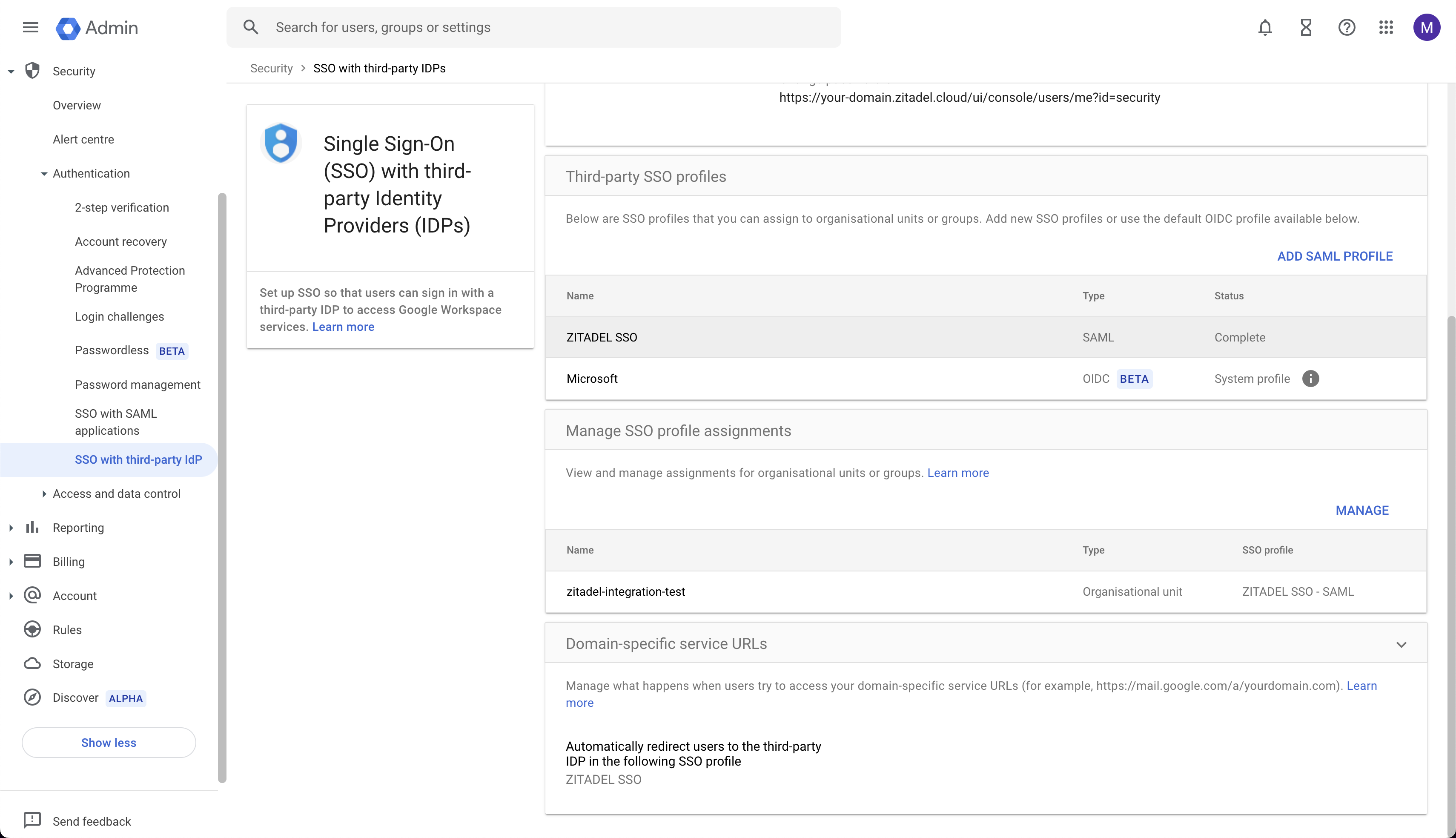

Now go ahead and click SAVE

Entity ID and ACS URL

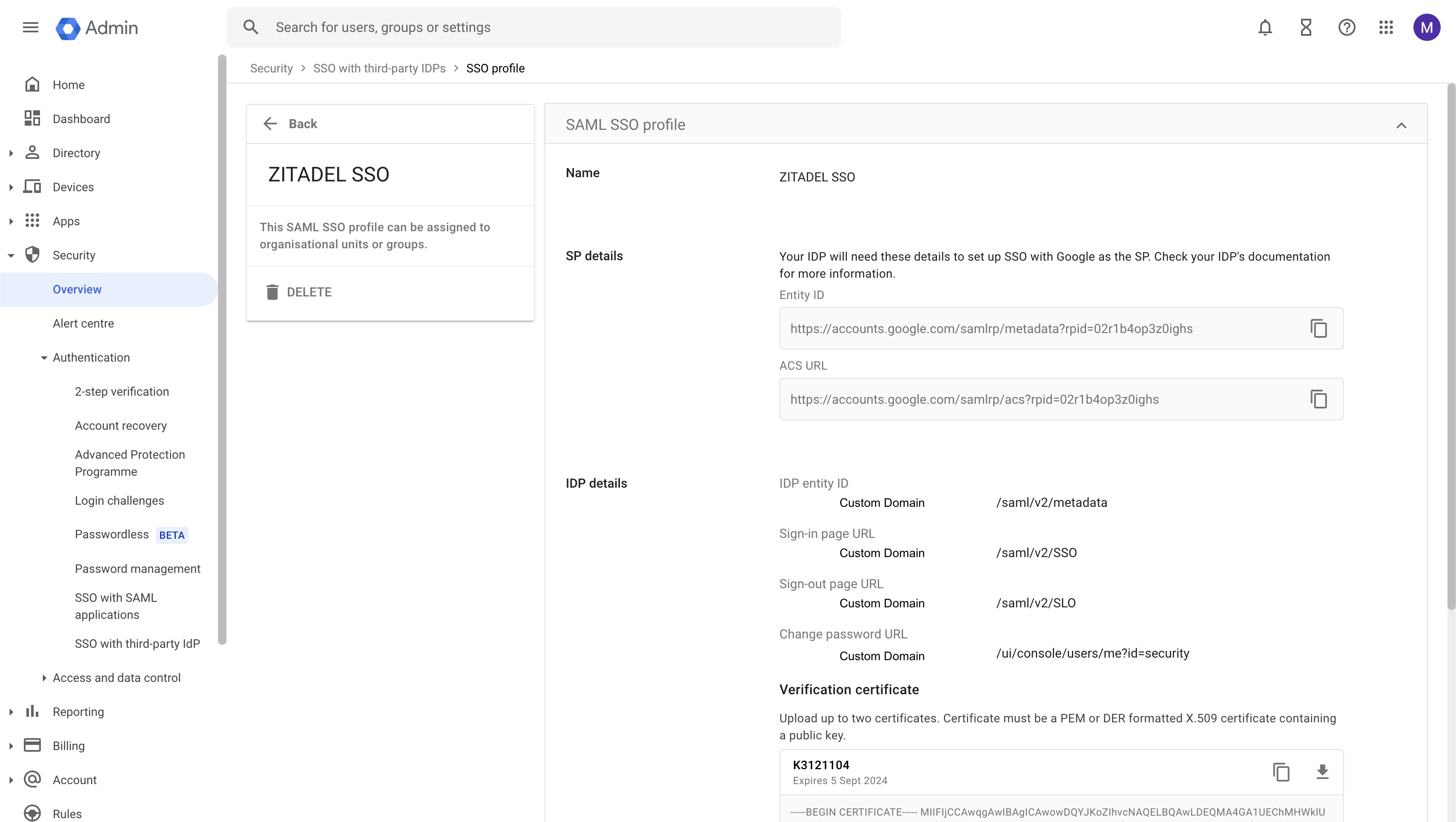

Open the Google settings for SSO with third-party IdP and click on the SAML Profile ZITADEL SSO

You can copy the "Entity ID" and "ACS URL" from the "SP details" section.

Create a SAML application in ZITADEL

Create a new .xml file with the following minimal SAML metadata contents:

<?xml version="1.0"?>
<md:EntityDescriptor xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata" entityID="${ENTITYID}">
    <md:SPSSODescriptor protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol urn:oasis:names:tc:SAML:1.1:protocol">
        <md:AssertionConsumerService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="${ACSURL}" index="0"/>
    </md:SPSSODescriptor>
</md:EntityDescriptor>

Set or replace the variables with the values from the next screen as follows:

• ${ENTITYID}: https://accounts.google.com/samlrp/metadata?rpid=<your_value>
• ${ACSURL}: https://accounts.google.com/samlrp/acs?rpid=<your_value>

Replace <your_value> with the values from the SSO profile.

In your existing project:

Press the "+"-button to add an application

Fill in a name for the application and chose the SAML type, then click "Continue".

Either fill in the URL where ZITADEL can read the metadata from, or upload the metadata XML directly, then click "Continue".

Check your application, if everything is correct, press "Create".

Activate the SSO profile

Make sure to enable the SSO profile.

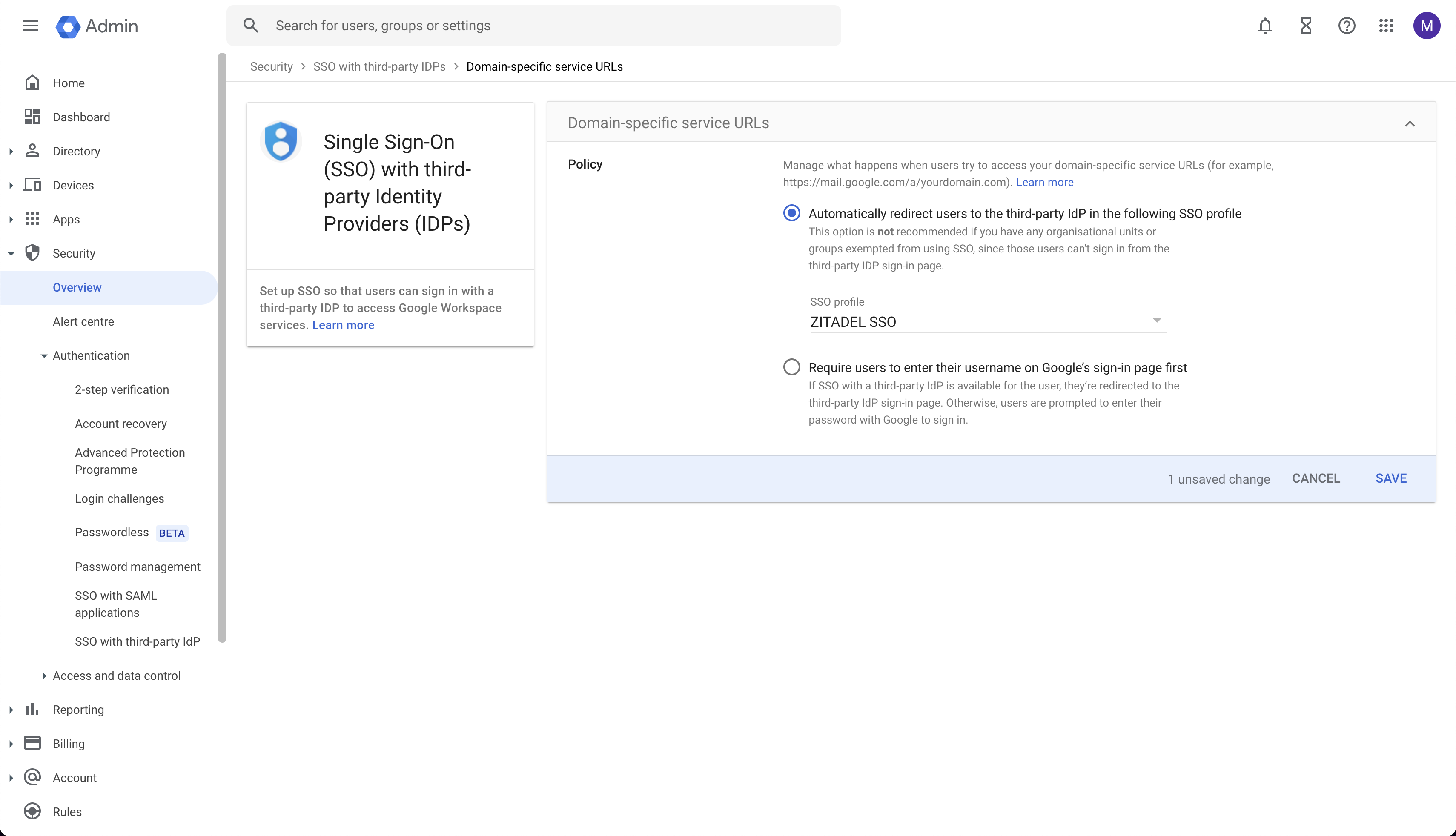

In the domain-specific service URLs settings select "Automatically redirect users to the third-party IdP in the following SSO profile" and select as SSO profile "ZITADEL SSO".

Save the settings.

Verify the SAML SSO profile

Now you should be all set to verify your setup:

• Open Gmail in an incognito session with the following link: https://mail.google.com/a/<your_domain>
• Enter your username and credentials
• You should be redirected to Gmail and logged in

<your_domain> is the domain you have verified in Google Workspace.

Troubleshooting

Make sure you don't use a super admin account in Google Workspace to test SSO. Super Admin users are not allowed to login with SSO and you might receive an status code 500.
